Tycon Power TP-DCDC-1224, 9-36VDC IN 24VDC OUT 19W DC to DC POE, 12V / 24V Battery Systems, High Temperature O
ϟ Product
details
Tycon SKU: TP-DCDC-1224

Tycon Power TP-DCDC-1224, 9-36VDC IN 24VDC OUT 19W DC to DC POE, 12V / 24V Battery Systems, High Temperature O

$350.00

Price includes GST

Currently unavailable
Express delivery availableEnter your postcode for delivery options and cost
⌖
Australian warrantyLocal support for every product
↶28-day free returnsEasy change-of-mind returns
AMEXApple Pay Google Pay Mastercard PayPalShop Pay Union PayVisa
Australian warrantyLocal support, every order
Fast dispatchFrom our Australian warehouse
Genuine productsSourced from trusted brands
28-day free returnsShop with confidence
SHOP WITH CONFIDENCE

Support that continues after checkout

Clear delivery, warranty and returns information—without surprises.

Express deliveryAustralia-wide delivery options shown at checkout.
Australian warrantyLocal support with warranty coverage applicable to each product.
28-day free returnsEasy change-of-mind returns under our returns policy.
Secure paymentsProtected checkout with the payment methods you know.
Shipping and delivery+

Enter your postcode above for available delivery options. Final delivery timing and cost are confirmed during checkout.

Australian warranty support+

Products include Australian warranty support. Coverage and conditions depend on the product and manufacturer, so no fixed warranty duration is displayed.

Returns and refunds+

Change-of-mind returns are available subject to eligibility and the conditions in our returns policy.

Privacy and secure checkout+

Your checkout is processed securely by Shopify and the payment provider you select.

Read privacy policy →
DESCRIPTION ADDITIONAL INFORMATION REVIEWS

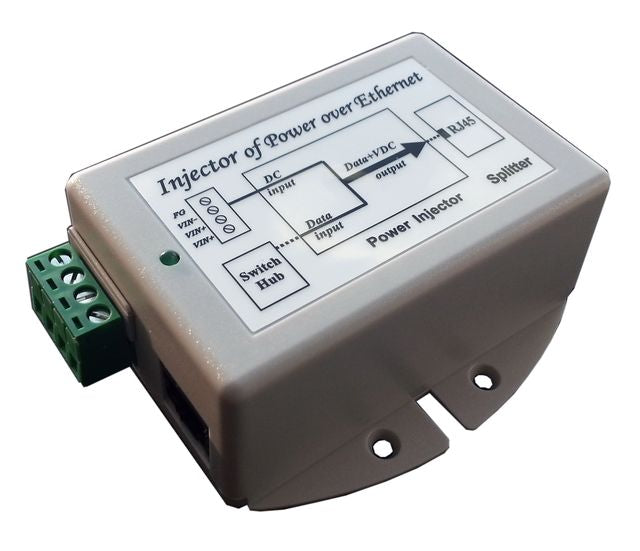

Tycon Power 9-36VDC Input, 24V Passive PoE Output, 20W Description: The TP-DCDC-1224 offered by Tycon Power is a low cost and high reliability solution for those requiring 24VDC Power over Ethernet voltage from a 12 or 24V battery system. They have an integrated POE injector to apply the 24VDC to the CAT5/6 Ethernet cable. The output is regulated 24VDC from an input voltage between 9VDC and 36VDC. They have one common (-) and two (+) inputs for connecting 2 power sources, such as a primary with a backup power source. A metal enclosure model is available for industrial applications. They accept data-in to a shielded RJ45 Jack and provide data-out and POE power on the shielded RJ45 output jack. They work by supplying power on the unused Ethernet pins 4,5(V+) and 7,8(V-). An IEEE 802.3af compliant model is available for those applications requiring 802.3af handshake. They have various protections for surge, short circuit and overload. The units have power output up to 24W. The DCDC converters are DIN rail mountable using DIN Rail adaptors pn: DIN-ClipKit-UNI SKU: TP-DCDC-1224 Data Sheet: Click Here User Guidet: Click Here Dimensional Drawingt: Click Here Features • Input Voltage 9-36VDC; Output 24VDC Passive • Dual Inputs for connecting 2 power sources • Integrated 10/100MB POE Inserter • High Power up to 19W • Short Circuit, Over Current and Reverse/Over Voltage Protection • High Temperature Operation • Compact size – Maximize Available Space • I.T.E. Power Supply, UL Listed Applications • 12V / 24V Battery Systems • Wireless Access Points and Client Devices • IP Phone and Security Camera Systems

  • Brand: Tycon
  • Manufacturer SKU: TP-DCDC-1224

From the manufacturer

Brand: Tycon
SKU: TP-DCDC-1224
Barcode: 1PTP-DCDC-1224
Weight: 0.14 kg
