Tycon Power TP-DCDC-1224G, 9-36VDC Input, 24V Passive Gigabit PoE Output, 20W, High Temperature Operation
ϟ Product
details
Tycon SKU: TP-DCDC-1224G

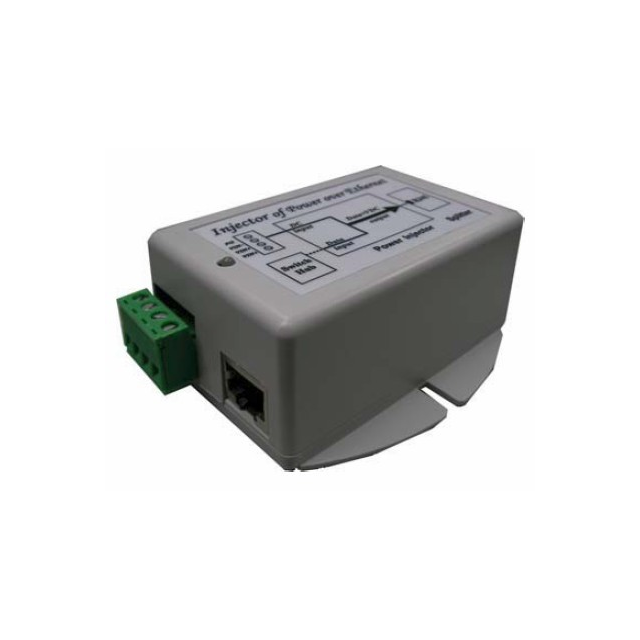

Tycon Power TP-DCDC-1224G, 9-36VDC Input, 24V Passive Gigabit PoE Output, 20W, High Temperature Operation

$398.00

Price includes GST

Currently unavailable
Express delivery availableEnter your postcode for delivery options and cost
⌖
Australian warrantyLocal support for every product
↶28-day free returnsEasy change-of-mind returns
AMEXApple Pay Google Pay Mastercard PayPalShop Pay Union PayVisa
Australian warrantyLocal support, every order
Fast dispatchFrom our Australian warehouse
Genuine productsSourced from trusted brands
28-day free returnsShop with confidence
SHOP WITH CONFIDENCE

Support that continues after checkout

Clear delivery, warranty and returns information—without surprises.

Express deliveryAustralia-wide delivery options shown at checkout.
Australian warrantyLocal support with warranty coverage applicable to each product.
28-day free returnsEasy change-of-mind returns under our returns policy.
Secure paymentsProtected checkout with the payment methods you know.
Shipping and delivery+

Enter your postcode above for available delivery options. Final delivery timing and cost are confirmed during checkout.

Australian warranty support+

Products include Australian warranty support. Coverage and conditions depend on the product and manufacturer, so no fixed warranty duration is displayed.

Returns and refunds+

Change-of-mind returns are available subject to eligibility and the conditions in our returns policy.

Privacy and secure checkout+

Your checkout is processed securely by Shopify and the payment provider you select.

Read privacy policy →
DESCRIPTION ADDITIONAL INFORMATION REVIEWS

Tycon Power TP-DCDC-1224G 24V Passive POE Output Gigabit Injector Description: The TP-DCDC-1224G is a low cost and high efficiency solution for those requiring Passive Power over Ethernet from a 12VDC voltage source like a battery system or vehicle. They have an integrated POE injector to apply the power and data output to the CAT5/6 Ethernet cable. The output voltage is regulated and protected. They have a common (-) and two (+) for connecting 2 power sources, such as a primary with a backup power source. A metal enclosure model is available for industrial applications. They accept gigabit data-in to a shielded RJ45 Jack and provide gigabit data-out and PoE power on the shielded RJ45 output jack. It works by supplying power on Ethernet pins 4,5(V+) and 7,8(V-). This converter has various protections for surge, short circuit and overload. Other models have power outputs up to 24W. SKU:TP-DCDC-1224G SPEC SHEET: Click Here USER GUIDE: Click Here DIMENSIONAL DRAWING: Click Here Features: • Input Voltage 9-36VDC; Output 24VDC (Passive) • Integrated Gigabit PoE Inserter • High Power 24W • Short Circuit, Over Current and Over Voltage Protection • High Temperature Operation • Removable Wire Terminal Input for up to 12AWG wires • I.T.E. Power Supply, UL Listed Dimensions: 85 x 76 x 36mm (3.4 x 3 x 1.4in) Weight: 134g (4.7oz)

  • Brand: Tycon
  • Manufacturer SKU: TP-DCDC-1224G

From the manufacturer

Brand: Tycon
SKU: TP-DCDC-1224G
Barcode: 1PTP-DCDC-1224G
Weight: 0.14 kg
