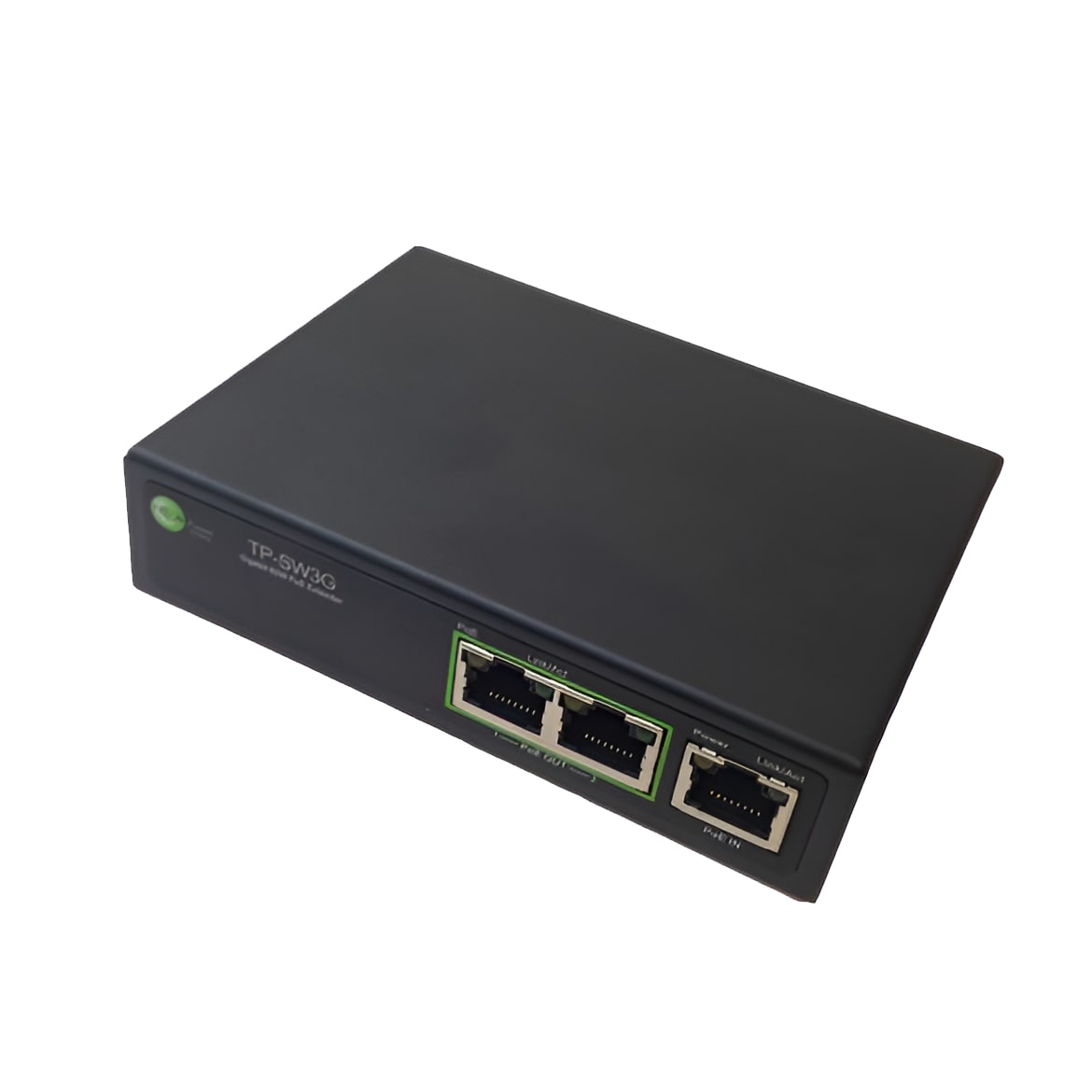

Tycon Power, TP-SW3G, 3 Port GigE 802.3af/at PoE Unmanaged Switch, 802.3af/at or Passive PoE 2/4pair Input, Du
ϟ Product
details
Tycon SKU: TP-SW3G

Tycon Power, TP-SW3G, 3 Port GigE 802.3af/at PoE Unmanaged Switch, 802.3af/at or Passive PoE 2/4pair Input, Du

$698.54

Price includes GST

Currently unavailable
Express delivery availableEnter your postcode for delivery options and cost
⌖
Australian warrantyLocal support for every product
↶28-day free returnsEasy change-of-mind returns
AMEXApple Pay Google Pay Mastercard PayPalShop Pay Union PayVisa
Australian warrantyLocal support, every order
Fast dispatchFrom our Australian warehouse
Genuine productsSourced from trusted brands
28-day free returnsShop with confidence
SHOP WITH CONFIDENCE

Support that continues after checkout

Clear delivery, warranty and returns information—without surprises.

Express deliveryAustralia-wide delivery options shown at checkout.
Australian warrantyLocal support with warranty coverage applicable to each product.
28-day free returnsEasy change-of-mind returns under our returns policy.
Secure paymentsProtected checkout with the payment methods you know.
Shipping and delivery+

Enter your postcode above for available delivery options. Final delivery timing and cost are confirmed during checkout.

Australian warranty support+

Products include Australian warranty support. Coverage and conditions depend on the product and manufacturer, so no fixed warranty duration is displayed.

Returns and refunds+

Change-of-mind returns are available subject to eligibility and the conditions in our returns policy.

Privacy and secure checkout+

Your checkout is processed securely by Shopify and the payment provider you select.

Read privacy policy →
DESCRIPTION ADDITIONAL INFORMATION REVIEWS

Tycon Power 3 Port 60W Gigabit PoE Extender. IEEE802.3af/at, it accepts 60W (or passive POE) and provides 2x 30w on each port Description: The TP-SW3G Power over Ethernet (PoE) 3 Port Gigabit switches offered by Tycon are fully automatic high speed Ethernet switches with up to 30W of PoE power per port. The unit accepts Gigabit data and power via PoE into the RJ45 “PoE In' port. The PoE In port is compatible with IEEE802.3af, IEEE802.3at and IEEE802.3at 4 pair (60W). It can also accept 42-57VDC Passive PoE. There are two fully compliant 802.3af/at Gigabit “PoE Out' ports. These ports are capable of up to 30W per port and 100m (330ft) distance. Multiple TP-SW3G can be strung together to provide effective distances up to about 300m depending on loads. No extra power is required as the units are powered over PoE. The units are compatible with Category 5 or higher Ethernet cables. The RJ45 connectors are shielded and grounded to the case. SKU:TP-SW3G SPEC SHEET: Click Here USER GUIDE: Click Here Features • 3 Gigabit Ports, Easy Plug and Play Operation • Extends the range of PoE and Ethernet an additional 100 meters or more • Compatible with IEEE802.3af and IEEE802.3at and IEEE802.3at 4 Pair (60W) • No Additional Power Supply is Required • Built-in Surge Protection • Automatic MDI/MDI-X Crossover • Automatic Speed and Duplex Sensing • Low Self Power and High Temperature Operation • CE and FCC Certification • Compact Desktop or Wall Mount Design and Compatible with DIN Rail Adapters • I.T.E. Power Supply, UL Listed Applications • Add another PoE and Data Port without running more Ethernet Cable • Extend Ethernet and PoE an additional 100 meters per each TP-SW3G

  • Brand: Tycon
  • Manufacturer SKU: TP-SW3G

From the manufacturer

Brand: Tycon
SKU: TP-SW3G
Barcode: TP-SW3G
Weight: 0.34 kg
